The 7" DuraTech Cathedral Ceiling Support Kit contains all the components needed to install a 7" chimney (excluding black stove pipe and DuraTech chimney sections) straight up through a cathedral ceiling.

DuraTech features light weight insulation, twist-lock fittings, support boxes with factory installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, and five foot length pipe sections.

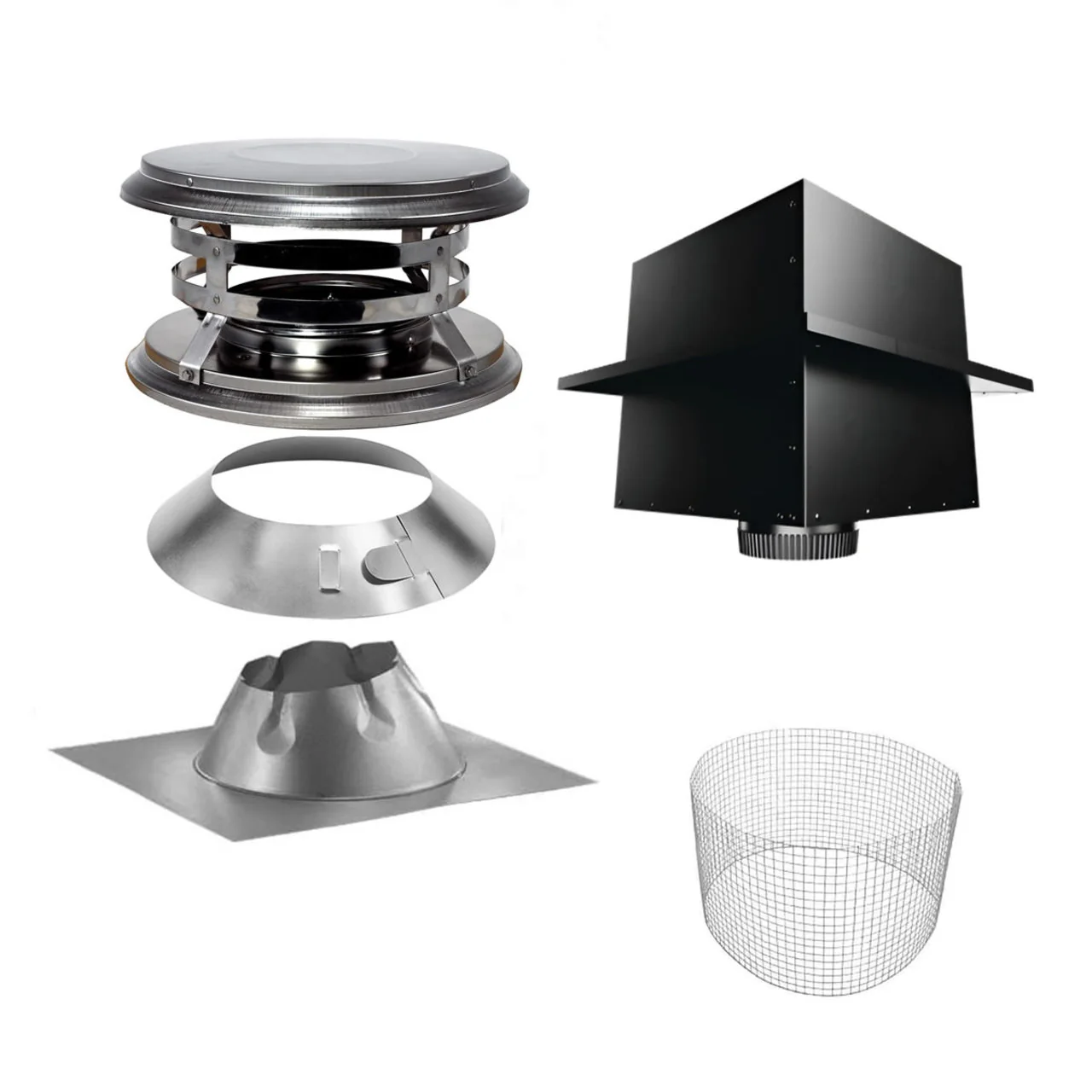

Included in this 7" DuraTech Kit:

7" DuraTech Chimney Cap
7" DuraTech Storm Collar
7" DuraTech Cathedral Ceiling Support Box
7" DuraTech Roof Flashing
7" DuraTech Stove Pipe Adapter

Options Available Include:

7" DuraTech Extended Roof Bracket

Not Included in this kit:

7" DuraBlack, or DVL Black Stove Pipe Lengths
7" DuraTech Chimney Pipe Sections Lengths

The 7" DuraTech Cathedral Ceiling Support Kit contains all the components needed to install an 6" chimney (excluding black stove pipe and DuraPlus chimney sections) straight up through a normal flat ceiling.

This kit includes the following: (from the cap down)

"Diagram for 7" DuraTech Cathedral Ceiling Support Kit

7" DuraTech Chimney Cap is required where the chimney pipe terminates above the roof line. This Chimney Cap has removable screws to allow for easier cleaning of the chimney and spark arrestor screen. Includes spark arrestor screen.

6" DuraTech Storm Collar this aluminum storm collar is required for use on any through-the-roof installations using a roof flashing.

7" DuraTech Roof Flashing provides leak proof roof penetration. The purpose of the roof flashing is to weatherproof the roof where the chimney penetrates the roof. The flashing gets tucked under the shingles and the shingles are cut around the flashing if needed. The flashing is sealed to the roof with silicone to provide that needed seal to prevent water from getting under the flashing and getting into the attic or house, then a storm collar is placed over the flashing and sealed to the chimney pipe with a high temp silicone to prevent water from running down the chimney.

7" DuraTech Attic Insulation Shield is required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. The Attic Insulation Shield fits over the Firestop Radiation Shield or Support box and consists of two-parts - a collar and a base.

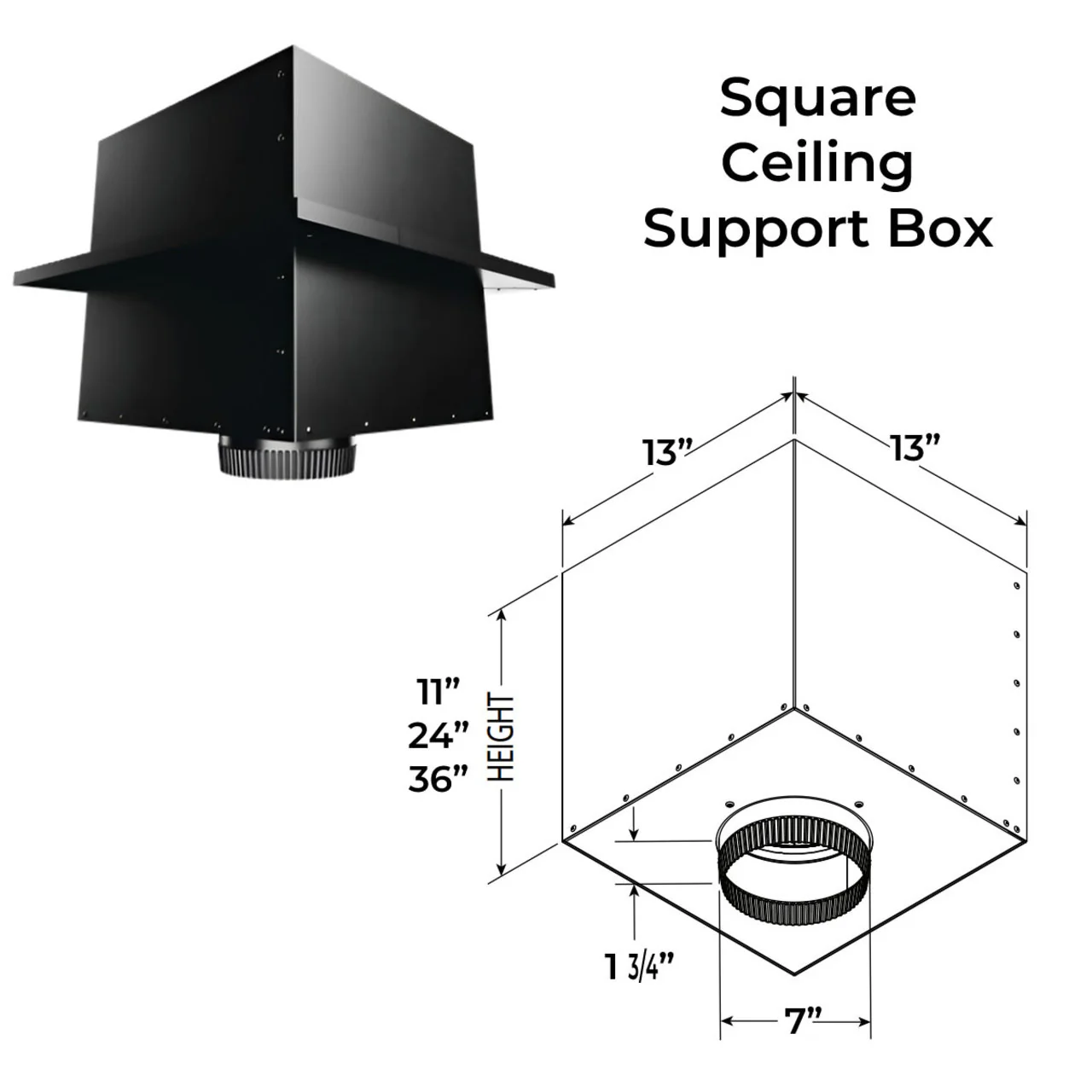

7" DuraTech Square Ceiling Support is used to support the chimney pipe and provide a positive connection between the support box and the chimney pipe with a built-in twist lock feature. This ceiling support is suitable for both flat and cathedral ceiling applications and it can also be used in short attic spaces. Designed for appliances that are tested and listed for use with a 2100° F HT chimney system, such as woodstoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. This Ceiling support fits between 16" on center joists and most mobile home applications and supports up to 60' of DuraTech Chimney. A 2" wide trim collar is included.

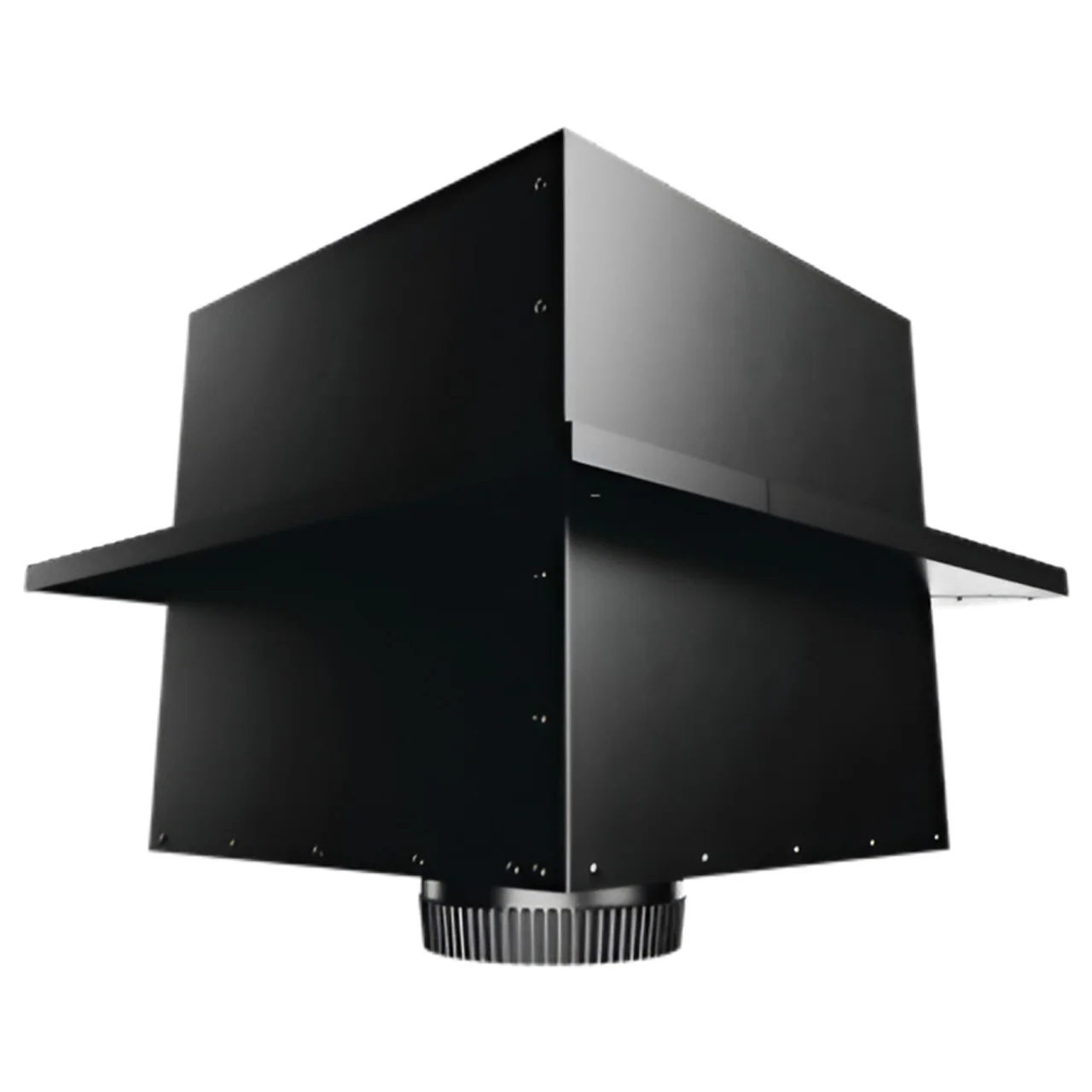

New 7" DuraTech Support Box with all necessary components included: The new 7DT-CS-2 support box, available in 11", 24", or 36" sizes, comes fully equipped, eliminating the need for separate adapters.

Complete Installation Solution - The support box includes all essential components, allowing direct connection from your stove pipe to the ceiling support without extra adapters.
Available in Multiple Sizes - Choose from 11", 24", or 36" options to suit your installation requirements, ensuring a proper fit for your setup.
Versatile Compatibility - Works seamlessly with DuraTech, DuraPlus, DuraPlus HTC, and DuraLiner chimney systems, offering a reliable and drip-free connection.
Effortless Installation - Designed for straightforward installation, this support box simplifies the process and ensures a secure mechanical connection for through-the-wall and ceiling installations.

Optional extended roof bracket is required when your chimney extends more than 5' above the roof. It will provide stability to the chimney against wind and snow

Simply add enough 7" stove pipe and class A chimney pipe to complete your installation.

California Proposition 65 Warning Symbol WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov."
